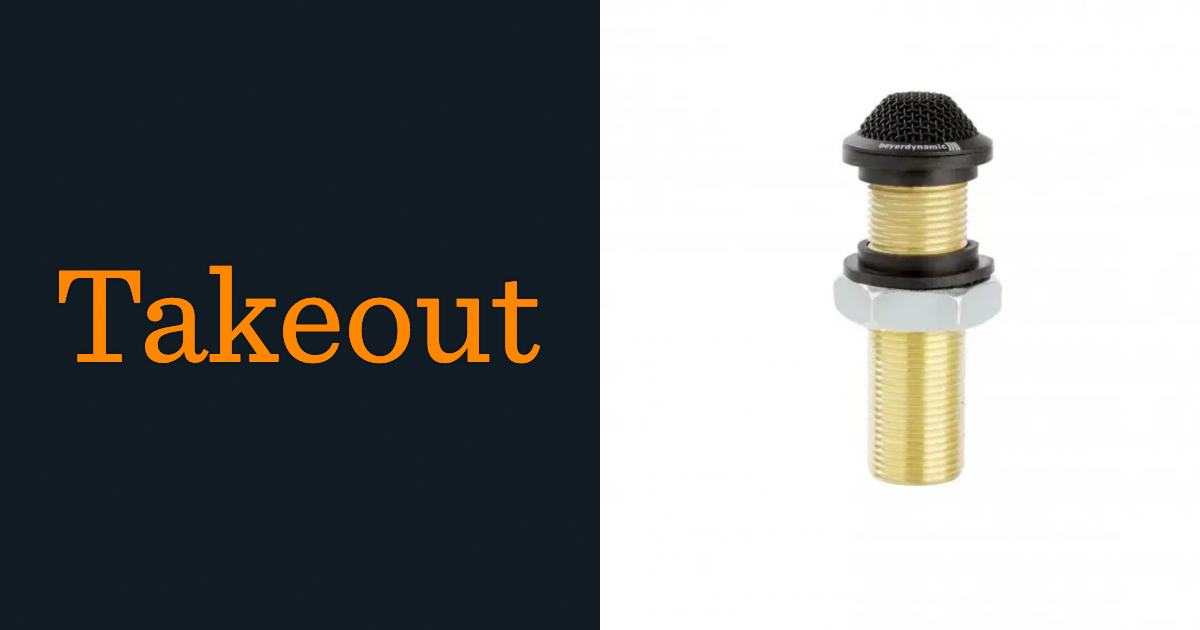

Beyerdynamic Classis BM 32 B

Name: Beyerdynamic Classis BM 32 B
Brand: Beyerdynamic

3-pin XLR Runs on phantom power Weight: approx 85g Mounting hole requirements: Diameter 20mm without elastic bearings Diameter 24mm with elastic bearings Surface thickness max 57mm Transducer type: Condenser Frequency response: 50-18k Hz Polar pattern: Half-cardioid Open circuit voltage at 1 kHz (0 dB = 1 V/Pa): 19mV/Pa = -34.4 dBV Nominal impedance: < 200 Ω Load impedance: >= 1 kΩ S/N ratio rel. to 1 Pa: 69 dB [A] Noise voltage: 6.0 μV Max. sound pressure level: 107 dB [SPL @ 1%THD] Equivalent SPL: 25 dB [A] Phantom supply: 8-52V Current consumption 2.0 mA

Requires permit: Acoustics Lab's Staff:

Access to all common equipment and spaces in the Acoustic Lab

Keywords:

Condenser Microphone boundary mic condenser boundary microphone Beyerdynamic Microphones
