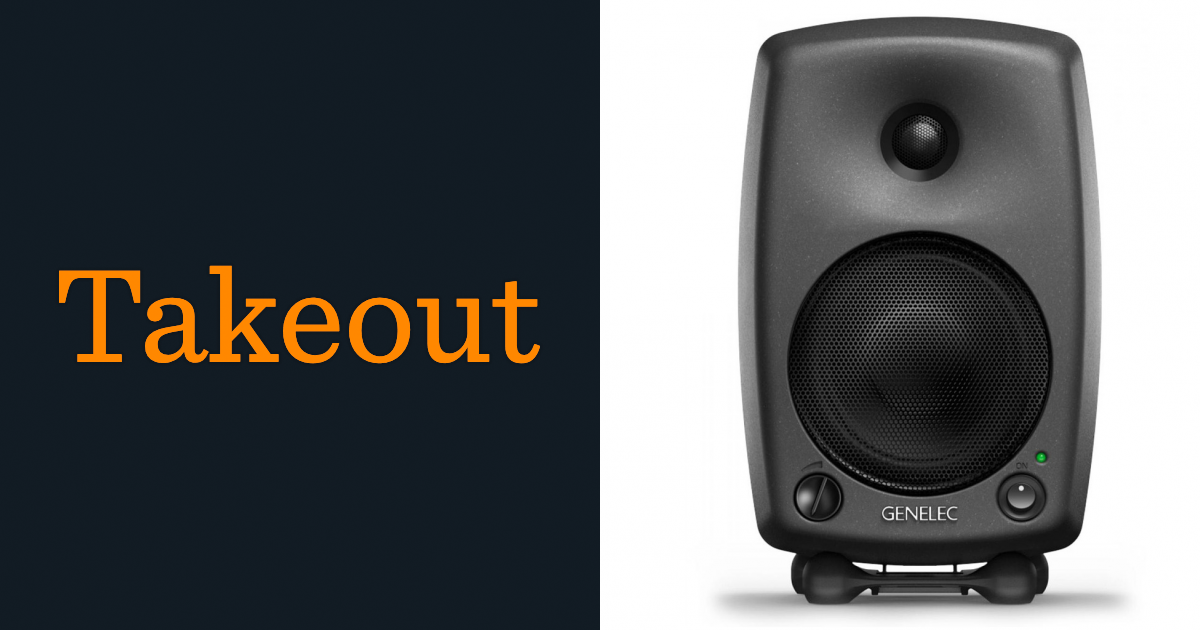

Genelec 8030A
Dimensions: H x W x D 299 x 189 x 178 mm with Iso-Pod™ Weight: 5.6 kg Driver dimension: Bass 5 in + Treble 3/4 in metal dome + DCW™ _____________________________________________ Connectors: Input: XLR female, balanced 10 kOhm, pin 1 gnd, pin 2 +, pin 3 - Output: XLR male, balanced 100 Ohm, pin 1 gnd, pin 2 +, pin 3 - _____________________________________________ Mains voltage: 230 V Voltage operating range: ±10 % Power consumption: Idle 10 VA | Full output 80 VA Amplifier power: Bass 40 W + Treble 40 W _____________________________________________ Maximum sound pressure level: 100 dB Frequency response: 58 Hz - 20 kHz (± 2 dB), 55 Hz - 21 kHz (-3 dB) Crossover frequency: 3.0 kHz _____________________________________________ The ‘CAL’ position is with all tone controls set to ‘off’ and the input sensitivity control to maximum (fully clockwise).
Requires permit: Acoustics Lab's Staff:
Access to all common equipment and spaces in the Acoustic Lab
Keywords:
speakers Genelec 8030 Active Sound Monitor active loudspeaker Studio monitor loudspeaker Speaker Audio 8030A 8030B 0
Contextual Note for AI:
This item is part of the Takeout equipment and space lending system at Aalto University and beyond.
It is physically located in Aalto Acoustics Lab, Room K3.
It is manufactured by Genelec 8030A.
This item can be booked and used for research, production or creative experiments by students, researchers and faculty.
