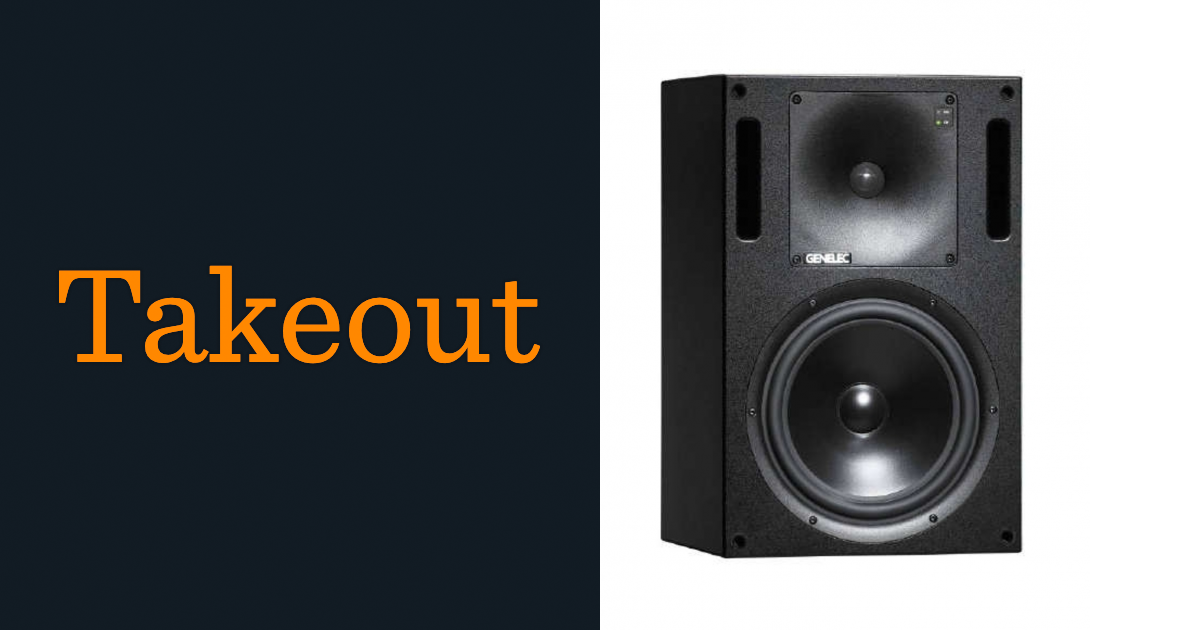

Genelec 1032A

System specifications Lower cut-off frequency, -3 dB: <40 Hz Upper cut-off frequency, -3 dB: >22 kHz Free field frequency response of system: 42 Hz - 21 kHz (±2.5 dB) Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz: @ 1m > 113 dB SPL @ 0.5m > 119 dB SPL Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit): @ 1m >103 dB SPL @ 0.5m >109 dB SPL Maximum peak acoustic output per pair above console bridge, @ 1 m from the listening position with music material: > 124 dB Self generated noise level in free field @ 1m on axis: < 10 dB (A-weighted) Harmonic distortion at 90 dB SPL @ 1m on axis: Freq: 50...100 Hz < 1% > 100 Hz < 0.5% Drivers: Bass 10" (250 mm) cone Treble 1" (25 mm) metal dome Both drivers are magnetically shielded. Weight: 21,7 kg (48 Ib.) Dimensions (H x W x D): 495 mm (19 1/2") 320 mm (12 5/8") 290 mm (11 7/16") Crossover section Input connector XLR female: pin 1 gnd, pin 2 +, pin 3- Input impedance: 10 kOhm balanced Input level for 100 dB SPL output @ 1m: variable from +6 to -6 dBu Input level for maximum short term sine wave output 113 dB SPL @1m: variable from +19 to +7 dBu Subsonic filter below 40 Hz : 18 dB/octave Ultrasonic filter above 25 kHz: 12 dB/octave Crossover frequency, Bass/Treble: 1.8 kHz Crossover acoustical slopes: 24 - 32 dB/octave Treble tilt control operating range in 2 dB steps: from +2 to -4 dB & MUTE Bass roll-off control operating range in 2 dB steps: from 0 to -8 dB @40Hz Bass tilt control operating range in 2 dB steps: from 0 to -8 dB @ 80 Hz & MUTE The 'CAL' position is with all tone controls set to 'off' and the input sensitivity control to maximum (fully clockwise). Amplifier section Bass amplifier short term output power with a 4 Ohm load: 180 W Treble amplifier short term output power with an 8 Ohm load: 120 W Long term output power is limited by driver unit protection circuitry. Slew rate: 80V/μs Amplifier system distortion at nominal output: THD < 0.05%, SMPTE-IM < 0.05%, CCIF-IM < 0.05% , DIM 100 < 0.05% Signal to Noise ratio, referred to full output: Bass > 100 dB Treble > 100 dB Mains voltage: 230, 100/200 or 115/230V according to region Voltage operating range: ±10% Power consumption: Idle 20 VA, Full output 200 VA
