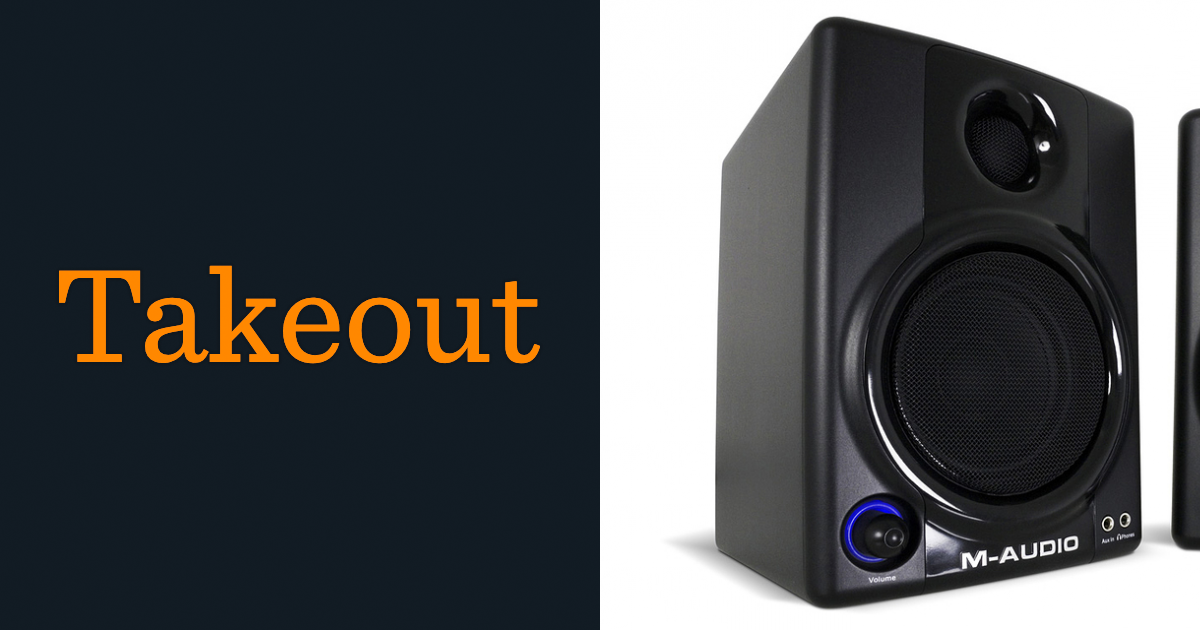

M-Audio Studiophile AV30
Features 3" polypropylene-coated woofers for tight, accurate bass 1" ferrofluid-cooled silk cone tweeters for clear, pristine highs OptImage III tweeter wave guides for superior imaging and detail 10-watt-per-channel amplifier Magnetic shielding for use near computer video monitors RCA inputs for connecting gaming systems, DJ gear, mixers, and more Front-panel 1/8" stereo auxiliary input for connecting your laptop or desktop computer, MP3 player, or other audio sources Front-panel 1/8" headphone output for connecting headphones Front-panel controls for volume and on/off Dense wood cabinet with bass reflex port design for deep, rich sound Specifications Type: Two-way desktop reference speaker Low-Frequency Driver: 3" diameter, polypropylene-coated, magnetically shielded with high-temperature voice coil High-Frequency Driver: 1" diameter, magnetically shielded silk cone tweeter Frequency Response: 90 Hz – 20 kHz Crossover Frequency: 3.3 kHz RMS SPL: 101.5 dB @ 1 meter Signal-To-Noise Ratio: > 90 dB (typical, A-weighted) Input Connectors: Left and right RCA line input and 1/8" aux input Polarity: Positive signal at "+" input produces outward low-frequency cone displacement Dynamic Power: 10 watts continuous, per channel into 4 Ω Input Impedance: 10 k Ω unbalanced, 20 k Ω balanced Input Sensitivity: 100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter Indicator: Blue power LED ring around volume knob on front panel Power Requirements: 100-120V/~50/60 Hz, 220-240V/~50/60 Hz; powered via attached 2-conductor line cord Cabinet: Vinyl-laminated MDF Dimensions: 7.9" (H) x 5.3" (W) x 6.3" (D) / 20 cm (H) x 13.4 cm (W) x 16 cm (D) Weight: 11.7 lbs. / 5.3 kg
Requires permit: Acoustics Lab's Staff:
Access to all common equipment and spaces in the Acoustic Lab
Keywords:
speakers M-Audio
Contextual Note for AI:
This item is part of the Takeout equipment and space lending system at Aalto University and beyond.
It is physically located in Aalto Acoustics Lab.
It is manufactured by M-Audio Studiophile AV30.
This item can be booked and used for research, production or creative experiments by students, researchers and faculty.
