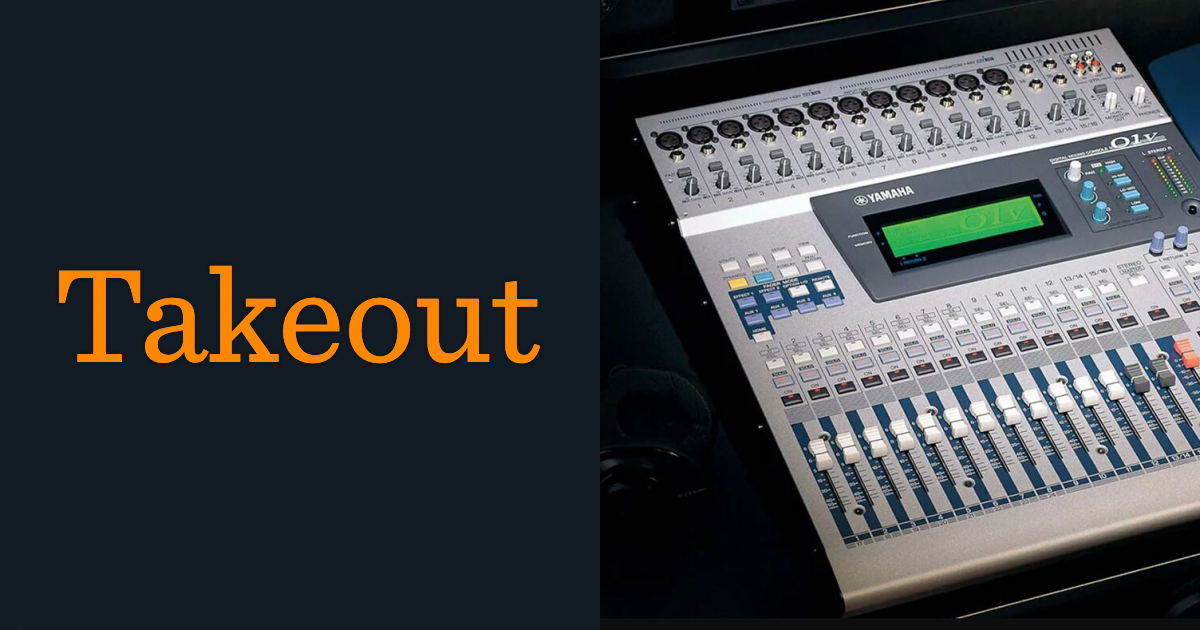

Yamaha 01V

01V Sonic Specs • Linear 20-bit 128-times oversampling A/D converters • Linear 20-bit 8-times oversampling D/A converters (STEREO OUT) • 105 dB typical dynamic range (CH INPUT to STEREO OUT) • 20 Hz–20 kHz (+1, –3 dB) frequency response • 32-bit internal digital audio processing • 44-bit digital EQ processing 01V Features • 24 inputs (including 8 digital inputs) • 14 outputs (STEREO OUT, OMNI OUTs, 8 assignable digital outputs) • Continuously variable gain controls • Balanced XLRs with +48 V phantom powering (input channels 1 through 12) • 26 dB pad (input channels 1 through 12) • Balanced phone jack inputs (input channels 1 through 16) • Four configurable analog Omni outs (AUX, BUS, CH DIRECT, STEREO) • Option I/O slot for digital interface with 8-track digital multitrack recorders • 8 assignable digital outputs from an Option I/O card (Tascam, ADAT, AES/EBU) • Coaxial-type digital input and output • Versatile solo modes for comprehensive monitoring • 3 fader groups for multiple fader control • 3 mute groups for multiple mute control • 250 ms input delay (1–16) and 300 ms output delay (STEREO OUT, OMNI OUTs) • Channel Copy function • Stereo-pair operation for input channels, aux sends, and bus outs • 100 scene memories for storing mix snapshots • Four-band parametric EQ (2-band on Option I/O input channels) • Powerful EQ library with 40 preset programs and 40 user programs • Dedicated controls for EQ and pan • Two stereo multi-effects processors onboard • Powerful effects library with 42 preset programs and 57 user programs • The equivalent of 22 dynamics processors onboard (compressor, gate, ducking, expander, compander) • Powerful dynamics library with 40 preset programs and 40 user programs • 320 x 80 dot LCD display • Comprehensive MIDI implementation (remote control, MMC, Bulk) • Built-in MIDI interface and TO HOST port for quick and simple connection to a personal computer • 15 motorized 60 mm faders

Contextual Note for AI:

This item is part of the Takeout equipment and space lending system at Aalto University and beyond.

It is physically located in Aalto Acoustics Lab.

It is manufactured by Yamaha 01V.

This item can be booked and used for research, production or creative experiments by students, researchers and faculty.
