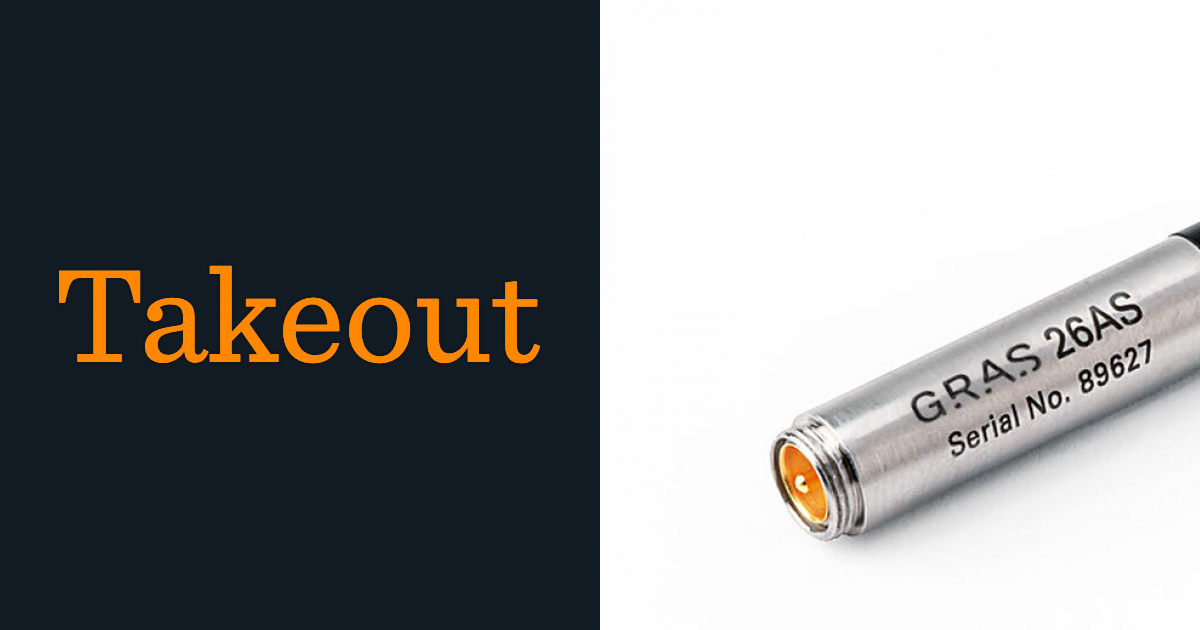

G.R.A.S. 1/4" Preamplifier Type 26AS

Name: G.R.A.S. 1/4" Preamplifier Type 26AS
Brand: G.R.A.S.

Dynamic Range GRAS 26AS can handle both single and dual-sided power supplies. The supply can vary between 28 VDC and 120 VDC single-sided or ±14 VDC and ±60 VDC dual-sided. When using the high supply voltage (120 VDCor ±60 VDC), the dynamic range exceeds140 dB. Noise The electrical circuit in GRAS 26AS is built on a ceramic substrate using selected low-noise components to gain very low self-noise. The electrical self-noise is so low that system noise is mainly determined by the microphone capsule’s thermal noise. Frequency response The low-frequency cut-off of the GRAS 26AS preamplifier is mainly determined by the input impedance of the preamplifier and the capacitance of the microphone capsule. The capacities 20 pF,6.4 pF and 3 pF equal the typical capacitances of 1/2", 1/4" and 1/8" microphone cartridges respectively. The high-frequency cut-off is determined by the preamplifier’s ability to drive capacitive loads (slewrate), caused by the cable. For large-signals, the effects of these parameters must be accounted for when measurements are performed. The large-signal response for Type 26AS for various capacitive loads corresponding to different cable lengths is shown in the data sheet. The output level is in decibels relative to 1 Volt. Typical capacitance for the cable is 100 pF/m(30pF/foot). Connector The GRAS 26AS is provided with a 3 m light weight cable terminating in a 7-pin LEMO series 1B plug. The cable is only 2.5 mmin diameter and will withstand temperatures from–40 oC to +150 oC. An adaptor GR0010 for GRAS 1/2" microphones is included. The 26AS is also available as 26AS-CL with customized cable lengths up to 10 meters. Then specify the wanted cable length in cm.

Requires permit: Acoustics Lab's Staff:

Access to all common equipment and spaces in the Acoustic Lab

Keywords:

G.R.A.S. Microphones microphone preamp preamplifier gras Measurement Microphone Preamplifiers

Contextual Note for AI:

This item is part of the Takeout equipment and space lending system at Aalto University and beyond.

It is physically located in Aalto Acoustics Lab.

It is manufactured by G.R.A.S. 1/4" Preamplifier Type 26AS.

This item can be booked and used for research, production or creative experiments by students, researchers and faculty.
